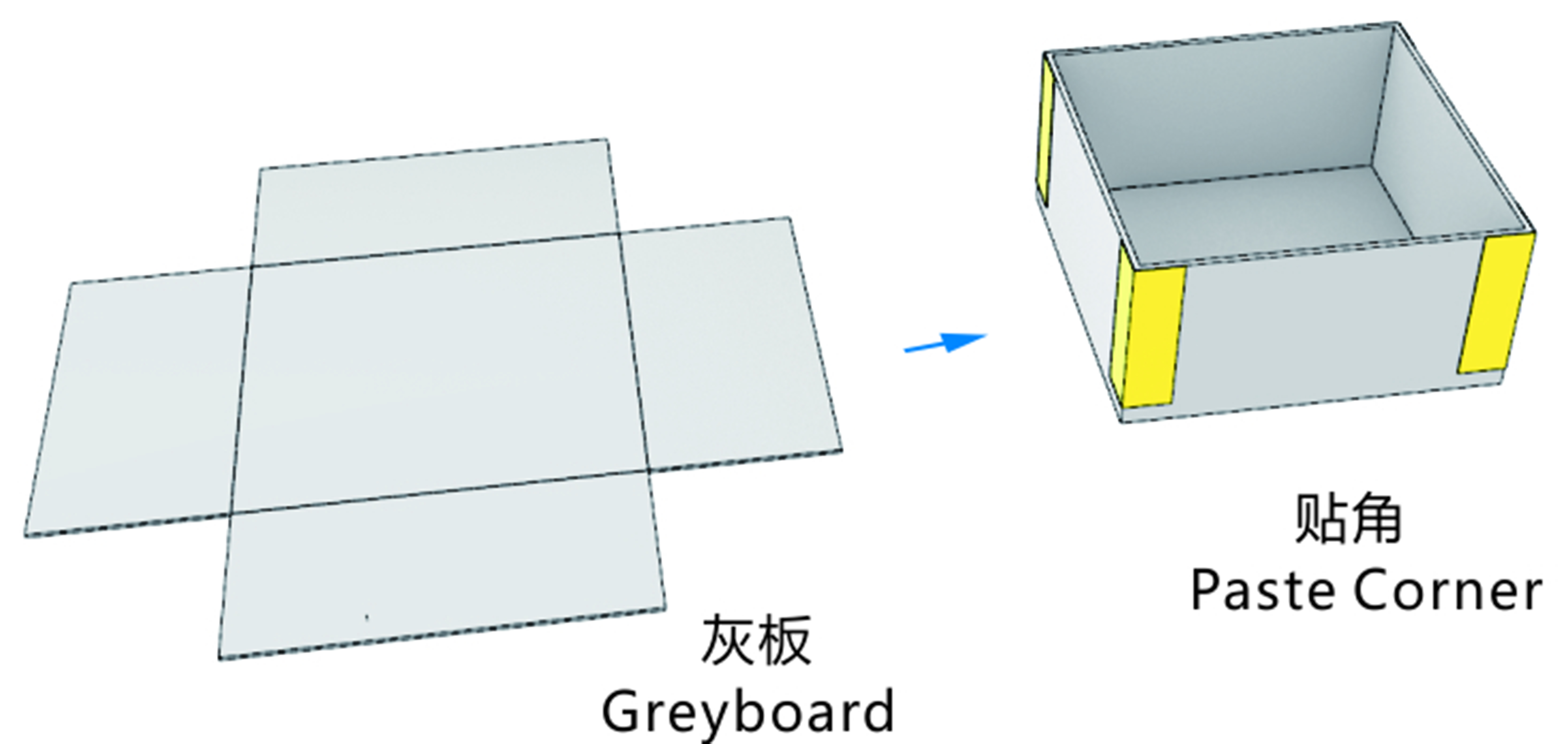

HM-S400 is an automatic four corner pasting machine, featured with plastic tape function.
| Model | HM-S400 | |
|
Finished Box size |
Max. Box Size | 450x400x130mm |
| Min. Box Size | 60x60x15mm | |
| Greyboard Board Thickness | 1-3mm | |
| Tape Width | 19mm | |
| Tape Length | ||
| Air Supply | 0.6-0.8Mpa | |
| Speed | ≤60pcs/min | |
| Power/Voltage | 2.2kW/AC220V | |
| Power Consumption | 1kW/h | |
| Net Weight | 800kg | |
| Machine Dimension | 1850x1600x2000mm | |
