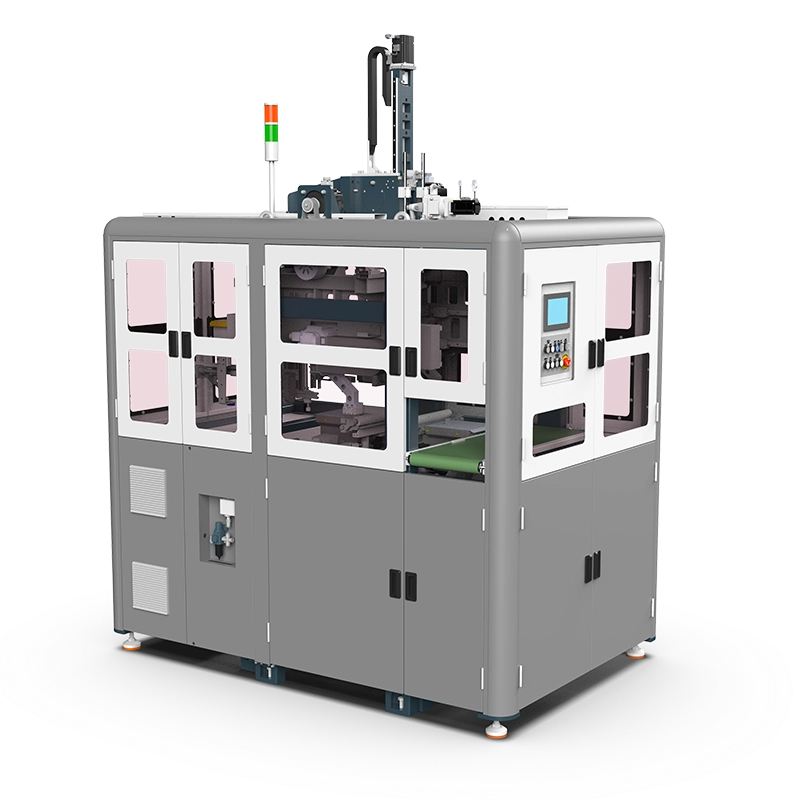

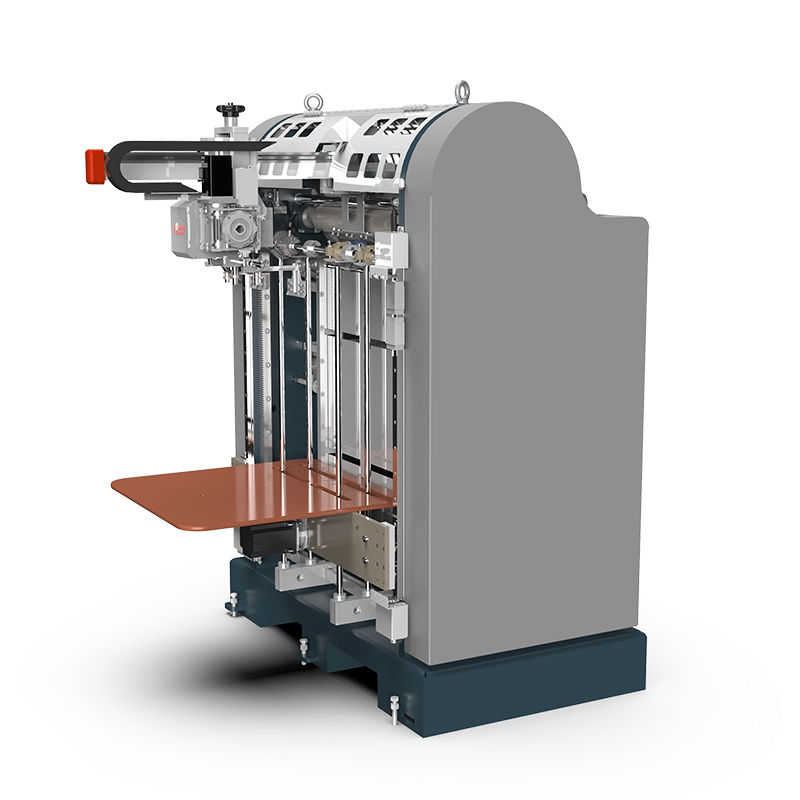

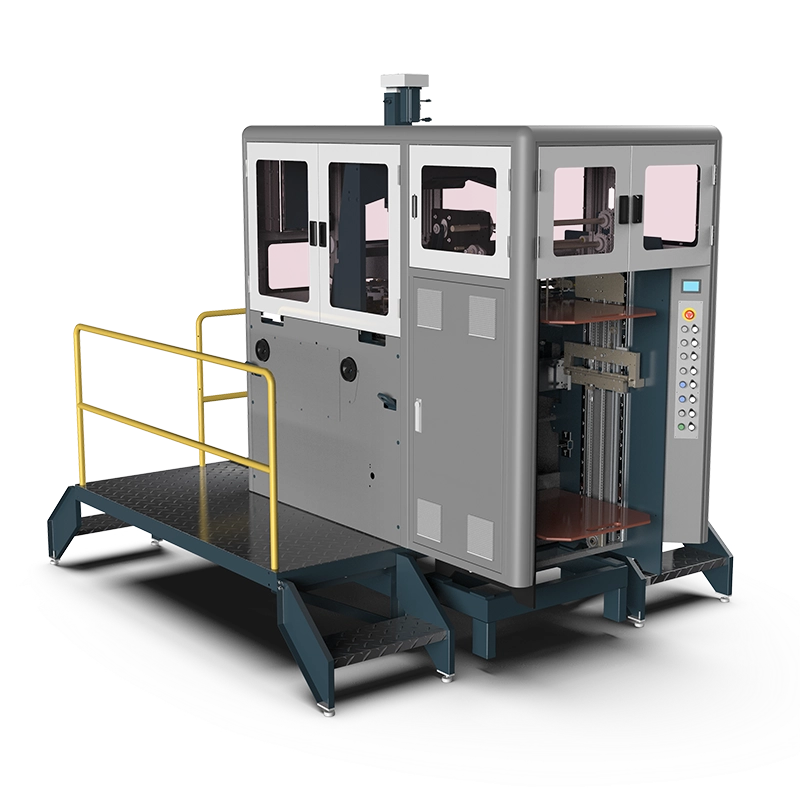

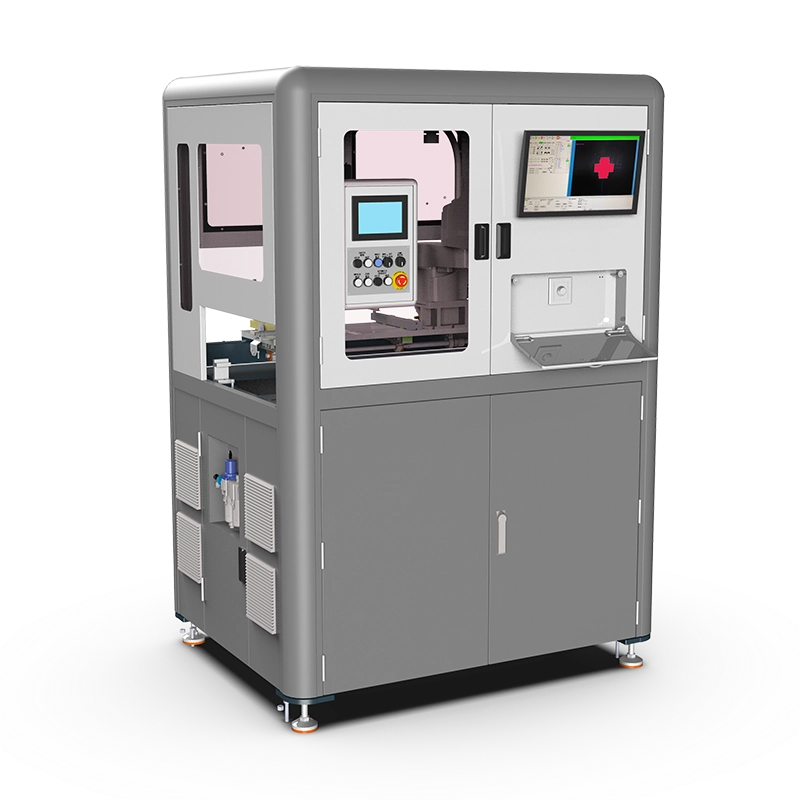

The SC series is single channel featuring fully automatic intelligent box-making with quick mold change capability. It is suitable for various box types.
Features and function:
| Model | HM-SC3046 | HM-SC4354 | HM-SC6461 | HM-SC6471 | HM-SC6481 | |
| Greyboard Thickness | Thickness T | 1-3mm | 1-3mm | 1-3mm | 1-3mm | 1-3mm |
| Paper Size
(W=Length, L=Width) |
Length (Max.) | 460mm | 640mm | 850mm | 950mm | 1010mm |
| Length (Min.) | 95mm | 180mm | 180mm | 180mm | 180mm | |
| Width (Max) | 460mm | 540mm | 610mm | 710mm | 810mm | |
| Width(Min.) | 60mm | 90mm | 95mm | 95mm | 95mm | |
| Thickness | 80-160gsm | 80-350gsm | 80-350gsm | 80-350gsm | 80-350gsm | |
| Finished Box Size
(L=Length W=Width H=Height) |
L(Max.) | 300mm | 400mm | 600mm | 600mm | 600mm |
| L(Min.) | 40mm | 60mm | 100mm | 100mm | 120mm | |
| W(Max.) | 300mm | 300mm | 400mm | 400mm | 400mm | |
| W(Min.) | 25mm | 50mm | 50mm | 50mm | 60mm | |
| H(Max.) | 120mm | 140mm | 150mm | 190mm | 250mm | |
| H(Min.) | 10mm | 10mm | 12mm | 12mm | 15mm | |
| Speed | ≤40pcs/min | ≤40pcs/min | ≤40pcs/min | ≤35pcs/min | ≤35pcs/min | |
| Voltage | AC380V | AC380V | AC380V | AC380V | AC380V | |
| Net Weight | 5200kg | 5500kg | 5700kg | 5900kg | 6200kg | |
| Machine Dimension | 5400 x 3700 x 3000mm | 5600 x 3900 x 3000mm | 7100x4300x3300mm | 7200x4500x3600mm | 7400x4600x3900mm | |
The Finished Box Max. sizes are determined by paper size. Therefore, A(Min.) ≤ W+2H+2T+2R ≤ A(Max.); B(Min.) ≤ L+2H+2T+2R ≤ B(Max.). In practical production, the single-channel automatic rigid box system must follow these calculation limits to ensure stable forming accuracy and consistent box quality.
However, operators cannot fulfill both the Max. sizes and the Min. sizes on the same box design at the same time. Therefore, production planning must be adjusted according to different box structures before operation begins. In this way, manufacturers can avoid dimensional mismatch and improve forming stability when using the single-channel automatic rigid box in real production environments.
In addition, if the finished box height is 110mm, then the length must be greater than 80mm. Conversely, when the length is less than 80mm, the finished box height should not exceed 90mm. Moreover, these proportional rules are essential for maintaining structural balance. As a result, the single-channel automatic rigid box requires operators to strictly follow dimensional coordination rules to ensure smooth production and prevent deformation during forming.
Furthermore, the production speed of the rigid box machine depends on box size, paper type, and greyboard materials. Therefore, different material combinations directly affect overall output efficiency and cycle stability. In addition, proper material selection and parameter adjustment can significantly improve productivity when operating the single-channel automatic rigid box in continuous manufacturing lines.
Finally, the seller does not provide an air compressor. Instead, users must prepare a compressor with 8 atm (0.808 MPa) and 7.5 kW power on their own. Consequently, stable auxiliary equipment is required to ensure the single-channel automatic rigid box operates under consistent air pressure conditions and maintains long-term production reliability.
