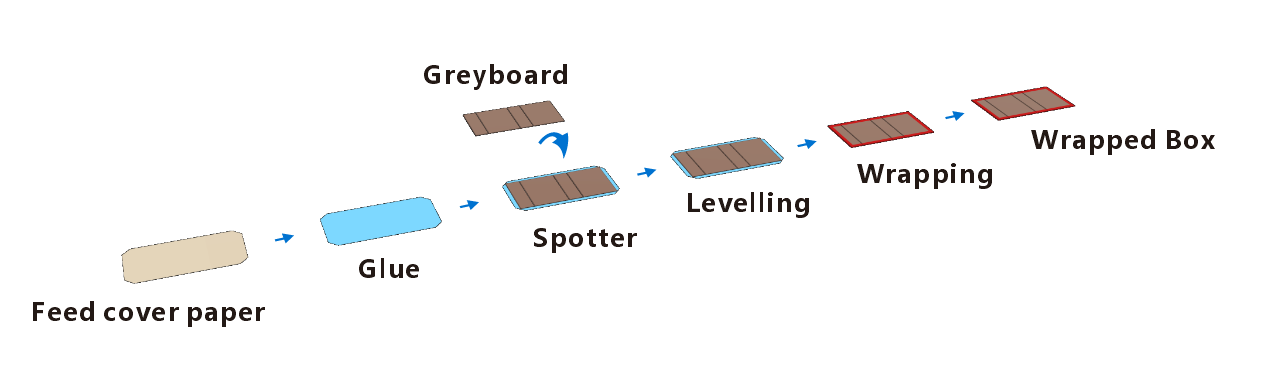

This precision-engineered Case Making system revolutionizes hardcover production. It is specifically designed for creating durable and high-quality hard covers, streamlining the entire process from board feeding to final pressing.
With fully computerized controls, the machine ensures each cover is perfectly calibrated for impeccable sharp corners and a flawless, tight finish.
The automated workflow significantly boosts output and consistency, making it an essential solution for producing premium hardcover books, albums, and specialty packaging with remarkable efficiency and precision.
| Model | HM-FM850
(Hardcover) |
HM-TN850
（Hardcover+Lining） |
HM-600H+HM-PK850D
(Hardcover) |
|
| Paper Size
B=Length, A=Width |
B (Max.) | 1000mm | 1000mm | 1300mm |
| B(Min.) | 180mm | 180mm | 180mm | |
| A(Max.) | 610mm | 610mm | 800mm | |
| A (Min.) | 95mm | 95mm | 95mm | |
| Thickness | 80-160gsm | 80-160gsm | 80-160gsm | |
| Speed | ≤32pcs/min | ≤25pcs/min | ≤25pcs/min | |
| Voltage | AC380V | AC380V | AC220V | |
| Net Weight | 3000kg | 5700kg | ≈1500kg | |
| Machine Dimension | 7700x2400x2000mm | 10500x6200x2000mm | 2950x1460x1420mm | |
