Dual-Channel Automatic Rigid Box Machine HM-DC6600/6610/6615 (Top & Bottom Box Produce Synchronized)

Description:

The DC Series is a fully automatic dual-channel intelligent box-making machine. It is suitable for simultanuous production of top & bottom boxess of various types.

Features and function:

Suit to all kinds of rigid boxes in mass production.

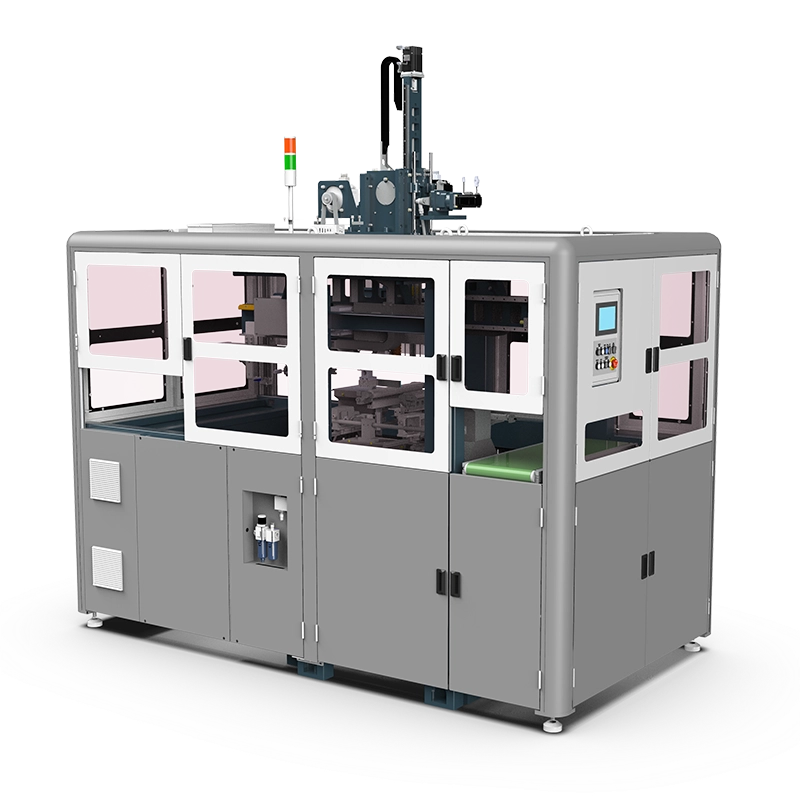

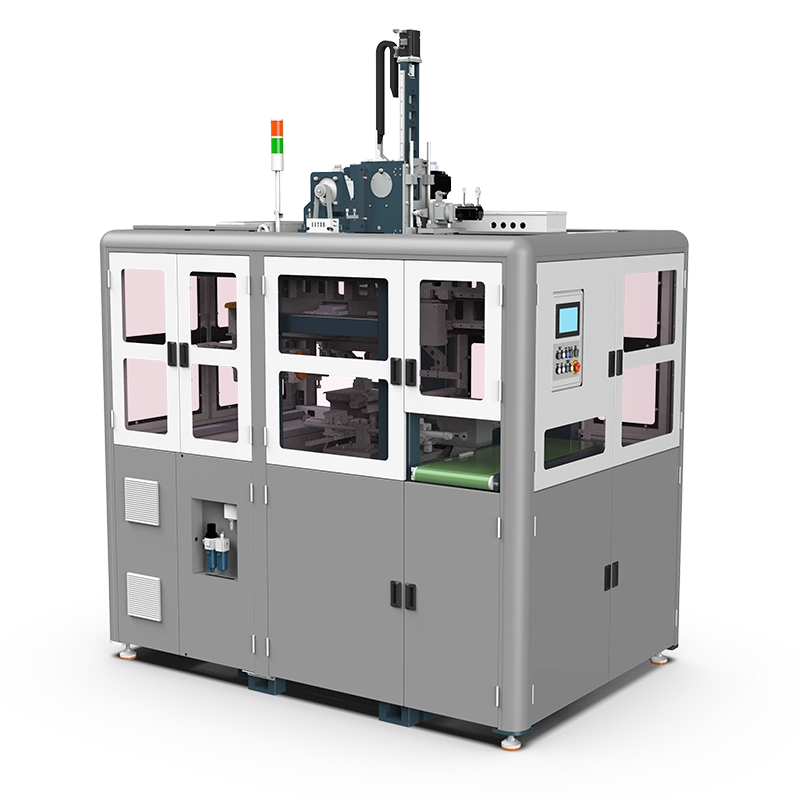

Dual-station forming, capable of completing the forming of top boxes and bottom boxes simultaneously.
Parametric intelligent adjustment.

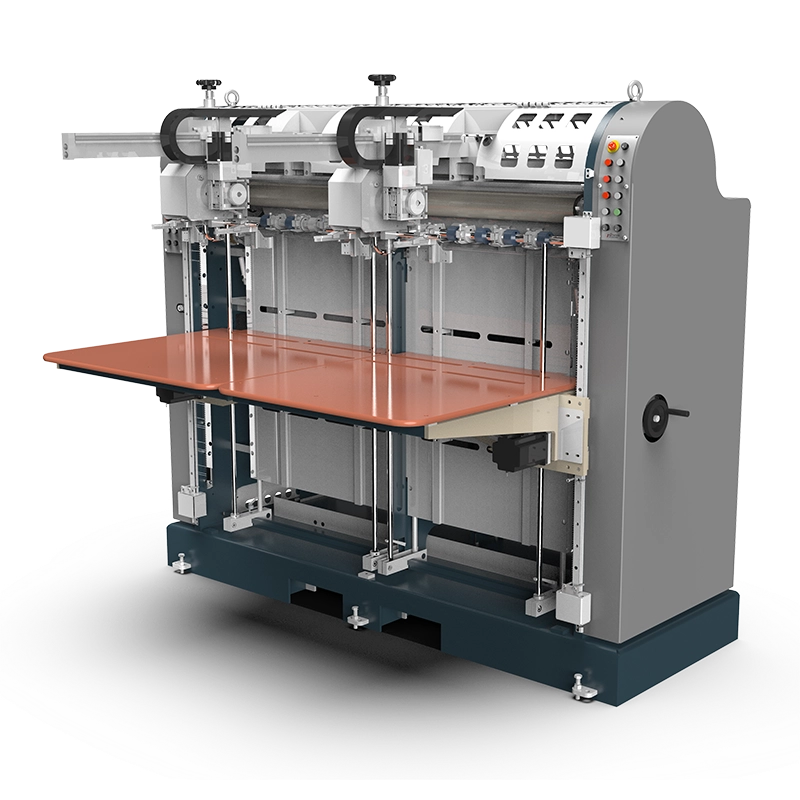

Able to convey the paper and gray board of top boxes and bottom boxes at the same time.
Intelligent gluing system, automatic adjust glue density and temperature.
Wrapper can input 300 product formulas.

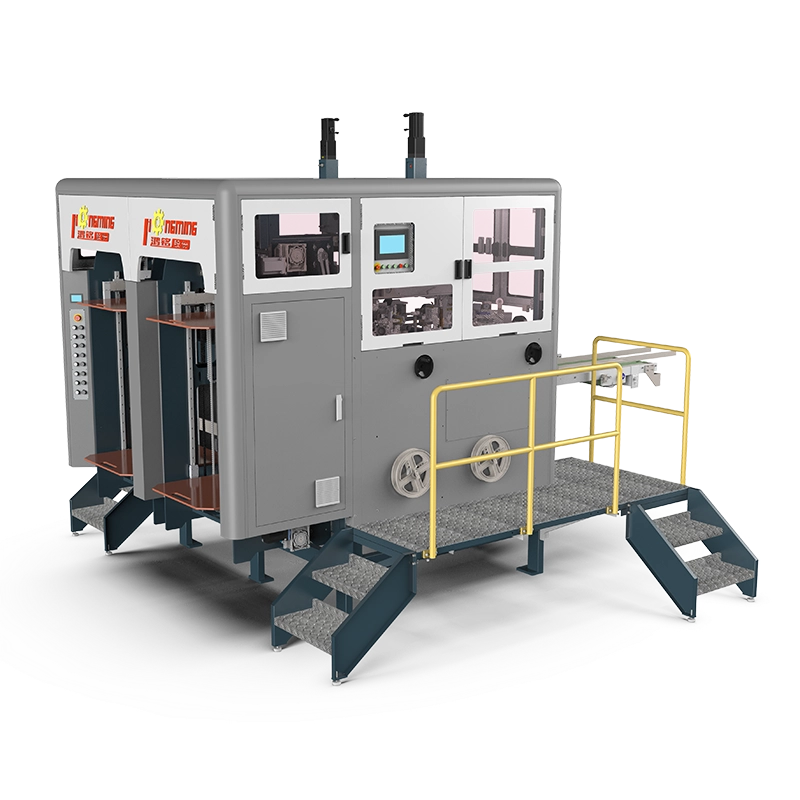

Corner pasting part with independent man-machine control and heating system.

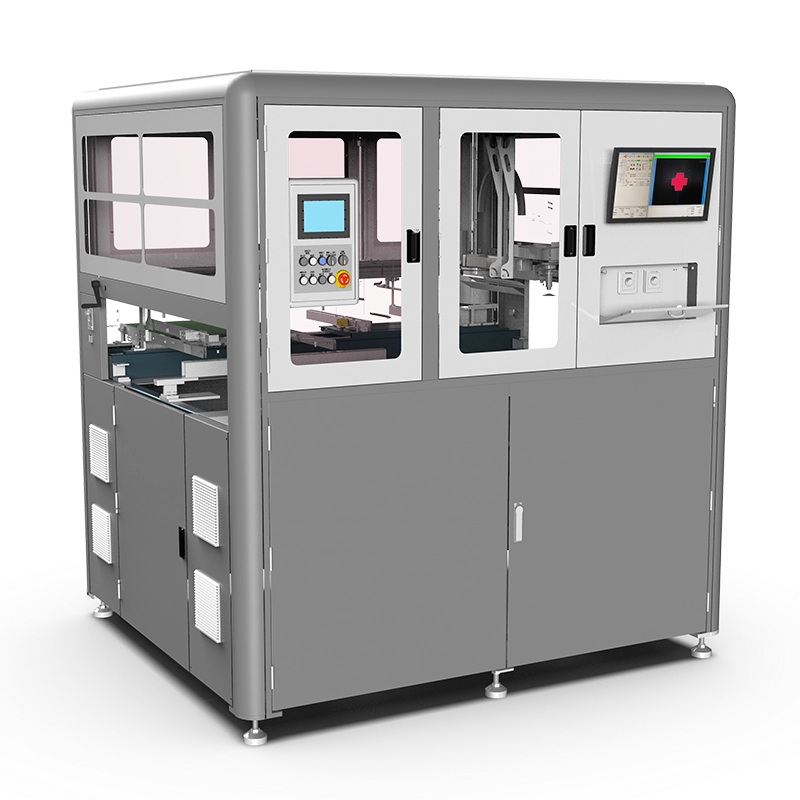

Multifunctional Robot Vision Image Positioning System(spotting accuracy of ±0.05mm).
Automatic box lifting and extracting device for boxes.
Parameters adopts computer digital setting.

Product Description

Technical Parameters：

Model		HM-DC6600	HM-DC6610	HM-DC6615
Greyboard Thickness	Thickness T	1-3mm	0.5-3mm	0.5-3mm
Paper Size (W=Length, L=Width)	Length (Max.) B	460mm	640mm	700mm
	Length (Min.) B	95mm	180mm	180mm
	Width (Max) A1	460mm	540mm	600mm
	Width (Max) A2	380mm	460mm	520mm
	Width(Min.) A	60mm	90mm	90mm
	Thickness	80-350gsm	80-350gsm	80-350gsm
Finished Box Size (L=Length W=Width H=Height)	L(Max.)	300mm	400mm	600mm
	L(Min.)	40mm	60mm	100mm
	W(Max.)	300mm	300mm	400mm
	W(Min.)	25mm	50mm	50mm
	H(Max.)	120mm	140mm	150mm
	H(Min.)	10mm	12mm	12mm
Speed		≤70pcs/min	≤70pcs/min	≤70pcs/min
Voltage		AC380V	AC380V	AC380V
Net Weight		8400kg	8700kg	9000kg
Machine Dimension		9200 x 4800 x 3000mm	9200 x 4800 x 3300mm	9200x4800x3300mm

Remark:

The Finished Box Max. sizes are determined by paper size. A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)

Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.

Slanting boxes which coverpaper folding into the bottom, it need additional bubble pressing machine to finish (start from the lowest point the inner boxes, draw a line to the high-side according to the slanting boxes angles, if the beleved folding coverpaper lower than this line then it called folding-into the bottom)

The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.

eller doesn’t provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).
