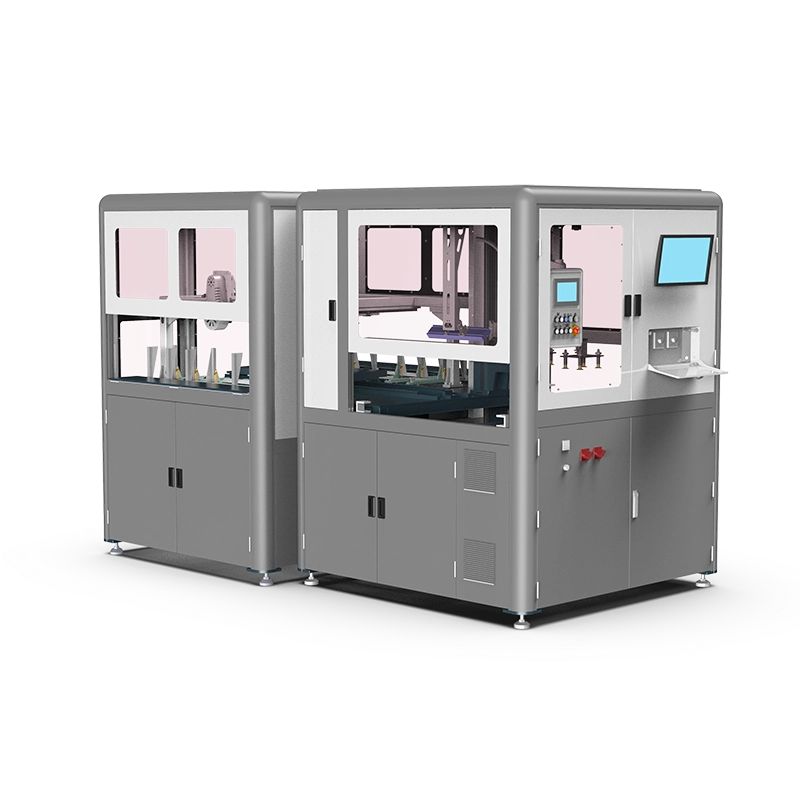

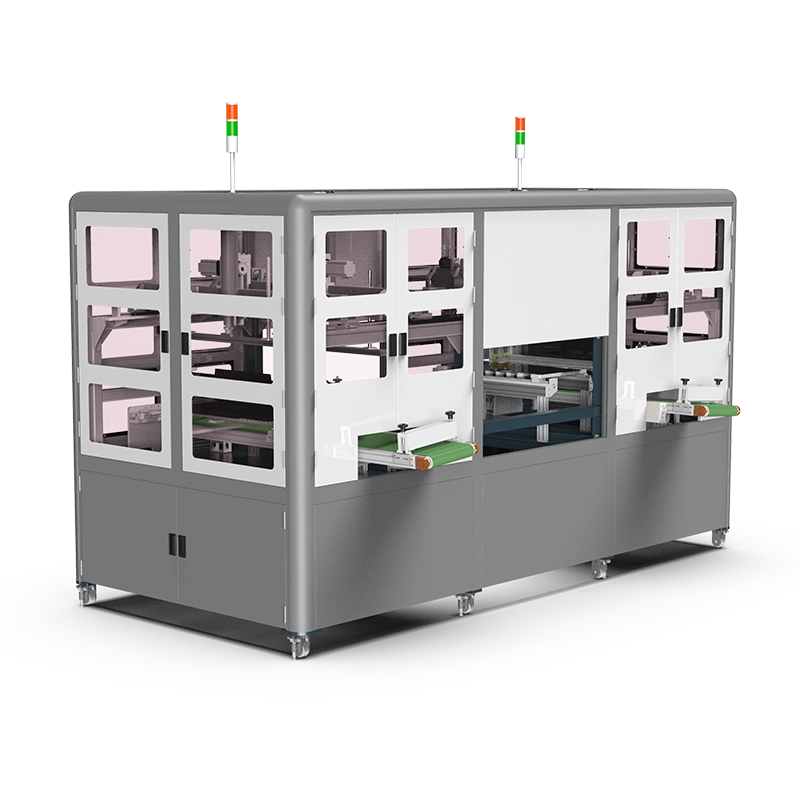

Dual-channel & Single-Channel side wing and case making machine is a collapsible box side wing forming equipment meticulously developed by our company, based on years of experience in the research and development of equipment such as rigid box gluing and positioning machines and hard cover machines. It is mainly suitable for production of side wings and case in collapsible boxes
| Model | HM-CY850D | HM-CY850S | |
| Side Wing Size (B=Length, A=Width) |
W(Max.) | 800mm | 800mm |
| W(Min.) | 200mm | 200mm | |
| L(Max.) | 180mm | 180mm | |
| L(Min.) | 55mm | 55mm | |
| Thickness | 80-160gsm | 80-160gsm | |
| Case
Dimensions
|
W(Max.) | 800mm | 850mm |
| W(Min.) | 200mm | 200mm | |
| L(Max.) | 450mm | 450mm | |
| L(Min.） | 55mm | 55mm | |
| Speed | ≤50pcs/min | ≤27pcs/min | |
| Voltage | AC380V | AC380V | |
| Net Weight | 8000kg | 8000kg | |
| Machine Dimension | 9000x6500x2200mm | 8000 x 4800 x 2200mm | |
