Folding boxes require accurate gluing to maintain their shape, strength, and overall appearance. If glue is applied unevenly, the finished box may open, deform, or show visible adhesive marks. Therefore, manufacturers need a reliable gluing system that can maintain consistent application across repeated production cycles.

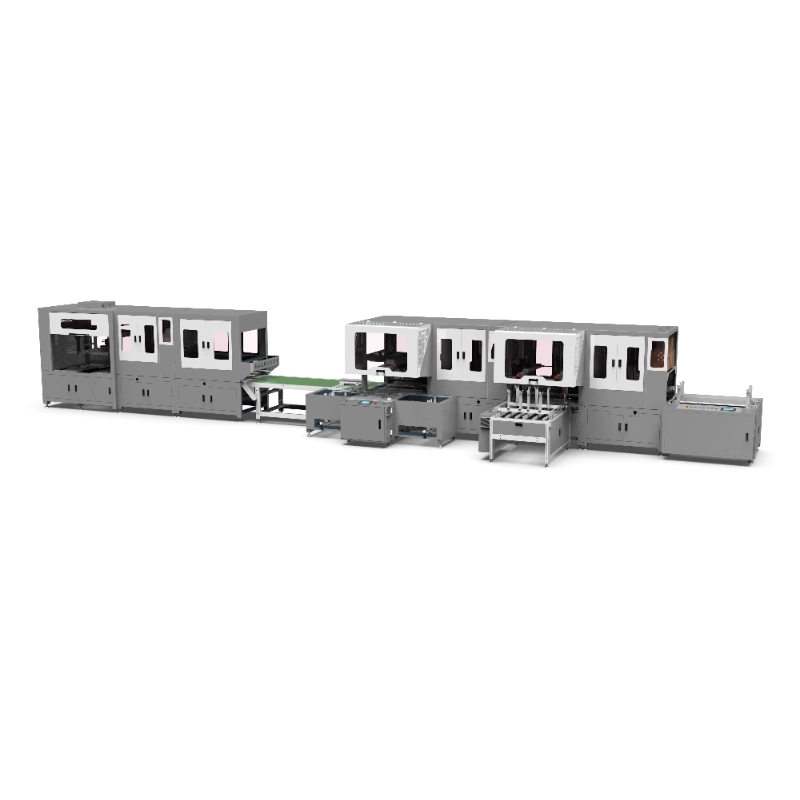

The auto gluing folding box machine addresses this requirement by combining automatic glue spraying, servo-controlled movement, precise positioning, and flexible forming functions. As a result, manufacturers can achieve more consistent folding box assembly while reducing manual operations.
How Servo-Controlled Glue Spraying Works
A servo-controlled glue system provides accurate control over the movement and application of adhesive. Instead of relying entirely on fixed mechanical settings, the spraying line can be configured through the machine’s control screen according to the product design.
Consequently, operators can adjust the glue application pattern to match different folding box requirements. Moreover, the system supports flexible spraying lines, allowing manufacturers to adapt the adhesive position without rebuilding the entire machine setup. This level of control is particularly useful when producing boxes with different structures or dimensions. It helps ensure that adhesive reaches the intended areas while reducing unnecessary glue application.
Key Features of the Automatic Folding Box Assembly System
The machine is designed specifically for collapsible box production and can support wing assembly and side-board assembly. It can also be adapted for closure box production by replacing the wing feeding module.
The main advantages include:
- Servo-controlled gluing: Provides accurate glue spraying and flexible glue line settings.
- Precise positioning: Japanese Panasonic servo motor technology supports accurate positioning.
- Four-station lifting platform: Helps simplify feeding operations and supports continuous production.
- Downward suction feeding: Helps prevent double or multiple hard-cover feeding and reduces scratching risks.
- Universal mold: Allows size adjustment without manufacturing an additional upper mold.
- Automatic forming: Glue spraying and folding can be combined into an automated forming process.
- Flexible glue options: Optional hot and cold double glue systems can improve adhesion and opening resistance.
- Labor reduction: The automated structure can reduce manual forming and assembly requirements.
Servo Gluing vs Traditional Manual Gluing
Manual gluing requires workers to control adhesive placement and quantity by hand. While this approach may work for small production runs, consistency can become more difficult as production volume increases.
By contrast, servo-controlled spraying allows the glue application process to follow programmed settings. Therefore, the operator can achieve more consistent adhesive placement across repeated products.
| Feature | Servo-Controlled Gluing | Manual Gluing |
|---|---|---|
| Glue Application | Programmed and controlled | Operator dependent |
| Glue Position | Adjustable on screen | Manually determined |
| Consistency | High repeatability | May vary |
| Production Efficiency | Higher automation | More labor intensive |
| Product Changeover | Flexible settings | More manual adjustment |
| Labor Requirement | Lower | Higher |
| Complex Glue Patterns | Easier to configure | More difficult |
As a result, servo-controlled gluing provides a practical advantage for manufacturers seeking stable quality and efficient folding box production.
Flexible Glue Line Configuration
Different folding box designs may require different adhesive patterns. For this reason, flexibility in glue spraying is an important part of modern packaging equipment. The machine allows the spraying line to be freely configured on the screen according to product requirements. Consequently, operators can adjust adhesive paths for different box structures without relying on a single fixed pattern.
Furthermore, an optional hot and cold double glue system can provide additional flexibility. Depending on the production requirement, manufacturers can select an adhesive combination designed to improve bonding strength and resistance to opening.
Four-Station Structure Improves Workflow
The four-working-station lifting platform is designed to make feeding and assembly more efficient. One operator can complete the feeding of cases and side wings, helping simplify the production workflow. Because the stations support continuous operation, production does not need to stop for every individual feeding step. Therefore, the machine can help improve workflow efficiency while reducing unnecessary labor.
For closure box production, the wing feeding module can be replaced with a conveyor belt. This universal structure allows the main machine to serve different packaging requirements without requiring an entirely separate machine.
Accurate Positioning for Better Box Formation
Glue accuracy alone is not enough to produce a well-formed folding box. The components must also be positioned correctly before and during forming. The machine uses a Japanese Panasonic servo motor for positioning control. As a result, the forming process can achieve more precise component alignment.
Moreover, accurate positioning helps maintain consistent box geometry across repeated production cycles. This is particularly important for packaging where appearance, symmetry, and structural stability directly affect the final product quality.
Universal Mold for Flexible Production
Traditional box-forming equipment may require different molds when product sizes change. However, this machine uses a universal mold structure that allows size adjustments without producing a separate upper mold.
Consequently, manufacturers can reduce mold preparation requirements when switching between different box sizes. This feature also makes the equipment more adaptable to changing production orders. The automatic glue painting system uses a four-triangle pattern, after which the folding box is automatically formed. In addition, the mold support helps make the folding process more standardized.
Reducing Manual Labor in Folding Box Production
Labor requirements can significantly affect packaging production efficiency. Manual gluing, positioning, and forming require multiple workers and can also introduce variations between products. The auto gluing folding box machine combines several automated processes into one production workflow. Therefore, fewer manual operations are needed during gluing and forming.
According to the supplied product specifications, the automated forming structure can potentially save up to five labor positions compared with more manual production methods. Actual labor savings will depend on product structure, production speed, and factory workflow.
Suitable for Different Collapsible Box Applications
The machine is specially developed for collapsible boxes and supports wing assembly and side-board assembly. In addition, the flexible structure allows it to be adapted for closure box production. This makes the equipment suitable for packaging manufacturers handling different box structures. Furthermore, the combination of automatic gluing, positioning, feeding, and forming can help create a more streamlined production process.
Why Choose Hongming for Folding Box Equipment?
Hongming develops packaging machinery designed to improve automation and production efficiency. The automatic collapsible box assembly system combines servo-controlled glue spraying, precise positioning, universal mold adjustment, and flexible feeding functions. Moreover, the machine is designed with practical production requirements in mind. From preventing multiple hard-cover feeding to simplifying box forming, each function supports a more controlled packaging workflow.
Improving Packaging Quality Through Automation
Automation can provide important advantages when packaging production requires consistent adhesive placement and repeatable forming. Servo-controlled glue spraying helps reduce variations in adhesive positioning, while accurate servo positioning supports consistent assembly. At the same time, the universal mold and flexible feeding structure allow the machine to accommodate different box requirements. Consequently, manufacturers can improve production flexibility without significantly complicating the operating process.
Conclusion
Accurate adhesive application plays a critical role in folding box quality. When glue is applied unevenly, the finished package may experience weak bonding, opening problems, or inconsistent appearance. By integrating servo-controlled glue spraying, precise positioning, automatic forming, and flexible mold adjustment, the auto gluing folding box machine provides a practical solution for modern collapsible box production.
Ultimately, automated gluing and forming can help manufacturers improve consistency, reduce manual operations, and create a more efficient production workflow. For packaging applications requiring flexible box structures and accurate adhesive placement, servo-controlled automation offers a reliable path toward better production performance.
