Dual-Station Automatic Rigid Box Machine HM-DS3046/4354/6461/6471/6481 (High-Speed)

Short Description:

Features and function:

Suit to all kinds of rigid boxes in mass production;
Parameters adopts computer digital setting ;

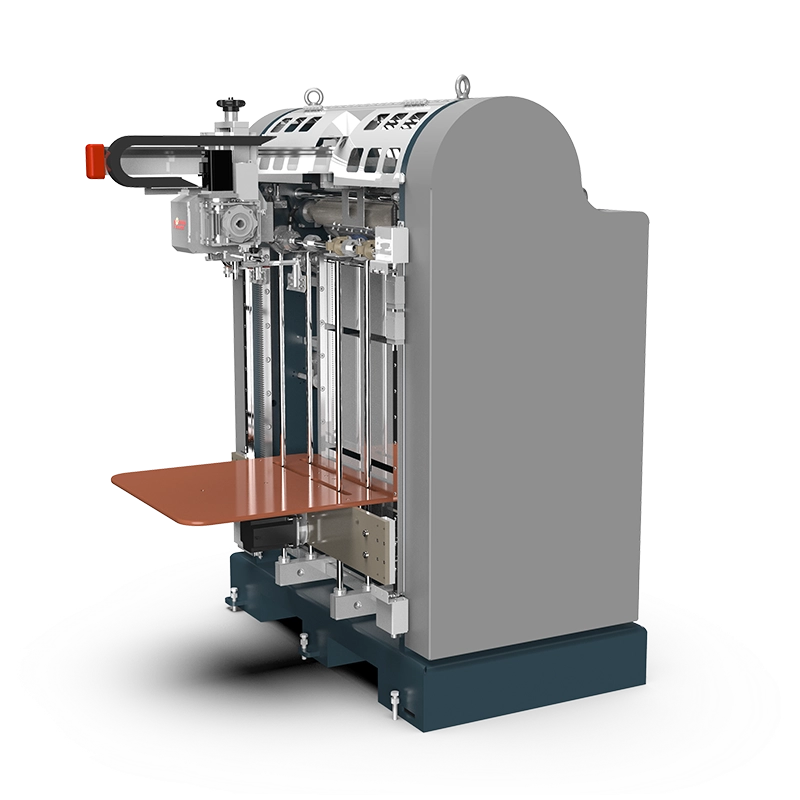

Automatic feed paper and greyboard;
Intelligent gluing system, automatic adjust glue density and temperature.
Wrapper can input 300 product formulas;

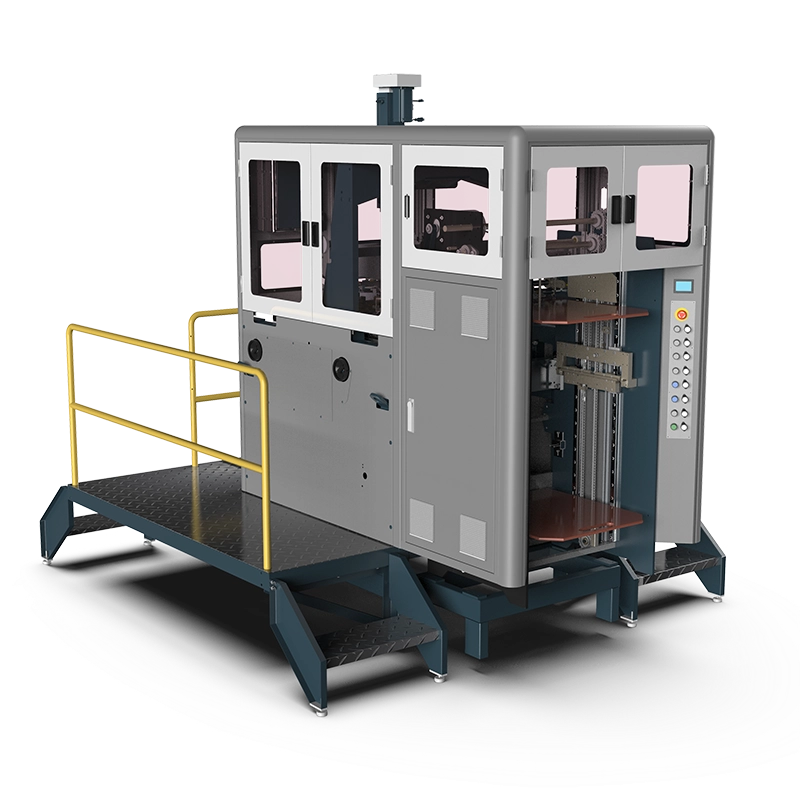

Corner pasting part with independent man-machine control and heating system;

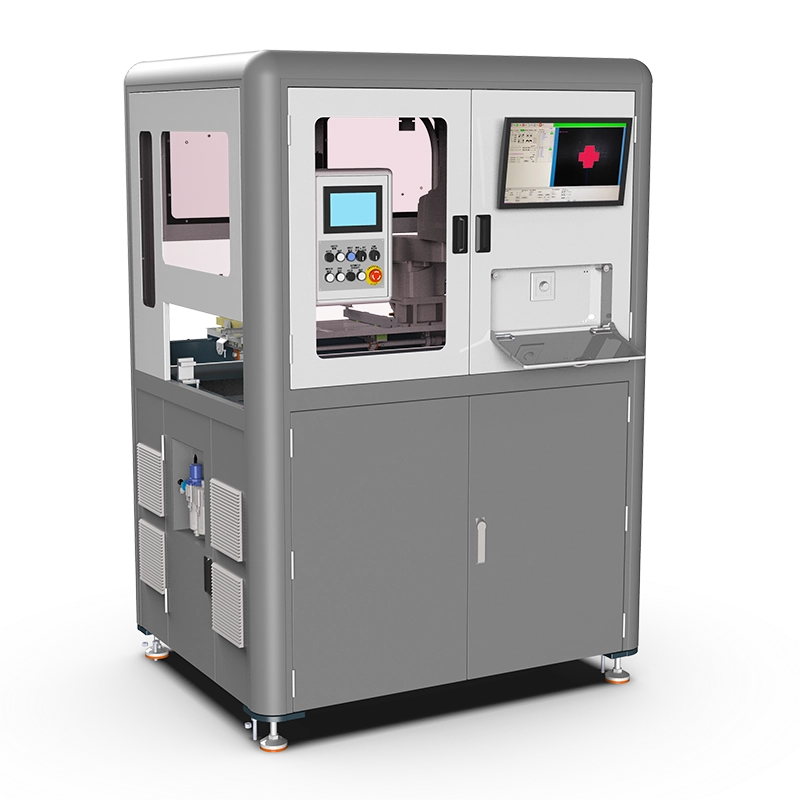

Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm)
Automatic control system for glue viscosity (optional)；
Digital setting with memory system (optional)；

Product Description

Model		HM-DS3046	HM-DS4354	HM-DS6461
Greyboard Thickness	Thickness T	1-3mm	1-3mm	1-3mm
Paper Size (W=Length, L=Width)	Length (Max.)	460mm	640mm	850mm
	Length (Min.)	95mm	180mm	180mm
	Width (Max)	460mm	540mm	610mm
	Width(Min.)	60mm	90mm	95mm
	Thickness	80-160gsm	80-350gsm	80-350gsm
Finished Box Size (L=Length W=Width H=Height)	L(Max.)	300mm	400mm	600mm
	L(Min.)	40mm	60mm	100mm
	W(Max.)	300mm	300mm	400mm
	W(Min.)	25mm	50mm	50mm
	H(Max.)	120mm	140mm	150mm
	H(Min.)	10mm	10mm	12mm
Speed		≤60pcs/min	≤60pcs/min	≤60pcs/min
Voltage		AC380V	AC380V	AC380V
Net Weight		6800kg	7000kg	7200kg
Machine Dimension		5400 x 4500 x 3000mm	5600 x 4900 x 3000mm	7100x5500x3300mm

The Finished Box Max. sizes are determined by paper size. A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
If finished box height is 110mm, the length＞80mm; when the length ＜80mm, the finished box height ≤90mm
The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
Seller doesn’t provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).

Please contact us for free virtual consultation and demonstration.
